The control system of the fully automatic large tonnage hot and cold forging steel wire winding hydraulic press is the core component of the equipment, with high intelligence and precision.
1. In terms of hardware:
Using high-performance industrial computers as the control core, it has powerful data processing capabilities and stable operational performance.
Equipped with high-precision sensors such as pressure sensors, displacement sensors, etc., real-time collection of various parameters during the operation of the equipment.
The communication module adopts advanced industrial Ethernet or fieldbus technology to ensure fast and accurate data transmission, and achieve efficient interconnection with other devices.
2. In terms of software:
Operating systems are usually developed based on mature industrial control software platforms, with user-friendly human-computer interaction interfaces that facilitate parameter settings, monitoring, and operations for operators.
The control program adopts advanced algorithms to achieve precise control of parameters such as pressure, speed, and stroke. For example, using PID (Proportional Integral Derivative) control algorithm can quickly adjust the output based on real-time feedback parameters, ensuring the stability and accuracy of the forging process.
Equipped with comprehensive fault diagnosis and alarm functions. The system can monitor the operating status of the equipment in real time. Once any abnormalities occur, such as high pressure, abnormal oil temperature, sensor failure, etc., an alarm will be immediately issued and detailed fault information will be displayed for timely troubleshooting.
3. Functional features:
Fully automatic programming function. Operators can pre write detailed forging programs according to different forging process requirements, including multi-stage pressure and speed control, holding time, etc. The equipment will automatically execute the forging process according to the program.
Data storage and analysis functions. Being able to record key parameters during each forging process and generate historical data. By analyzing these data, process parameters can be optimized, product quality and production efficiency can be improved, and reference can be provided for equipment maintenance and upkeep.
Remote monitoring and control function. With the help of network technology, remote monitoring and operation of devices can be achieved, making it convenient for technicians to debug and maintain devices in different locations, and improving service response speed.
For example, in actual production, when forging a complex shaped part, the operator only needs to input the corresponding process parameters and programs in the control system, and the hydraulic press can automatically perform precise cold and hot forging processing according to the set steps and parameters, ensuring the quality and consistency of the part.
In summary, the control system of the fully automatic large tonnage hot and cold forging steel wire winding hydraulic press has a high degree of intelligence, precision, and reliability, providing strong guarantees for the efficient and stable operation of the equipment and high-quality forging processing.
Partial configuration table of hydraulic power machine
| project | YRK-6500SD | YRK-8000SD | YRK-10000SD | YRK-12000SD | | |
| Main oil cylinder nominal force | 20000 KN | 25000 KN | 30000 KN | 35000 KN | | |
| Maximum working pressure of the main oil cylinder | 80 Mpa | 80 Mpa | 80 Mpa | 80 Mpa | | |
| Maximum travel of the activity crossbeam | 450 MM | 450 MM | 500 MM | 500 MM | | |
| Effective area of worktable (lr*fb) mm² | 1400*1400 | 1400*1400 | 1500*1500 | 1600*1600 | | |
Specifications:
| Description |

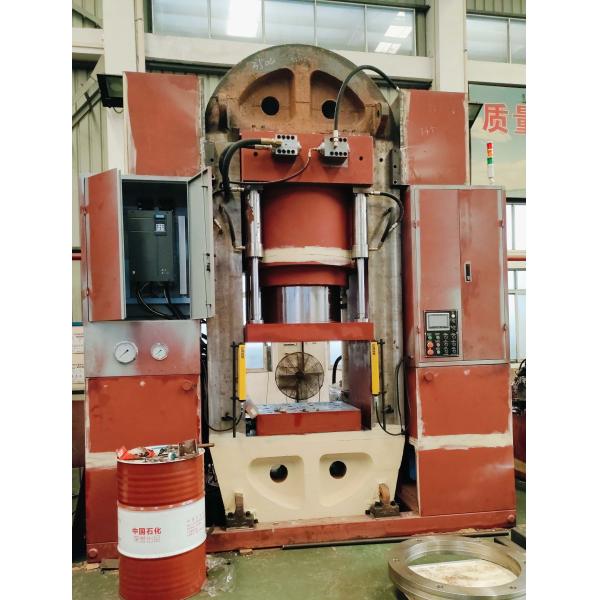

| Large tonnage hot and cold forging steel wire winding hydraulic press |
| Purpose: This equipment is suitable for cold and hot forging, precision forging, and extrusion forming processes of metal and non-ferrous metal materials. For example, forging and forming of large finned heat sinks, wireless base station heat dissipation plates, wheel hubs, and complex disc-shaped structural components. |
| Advantage: safe operation. |
| Operator: 1 person. |
| Servo motor power(KW) | 181 |
| Rated Voltage(V) | 380 |
| Effective area of workbench (left and right * front and rear mm) | 1500*1500 |
| Return cylinder stroke (mm) | |
| Active beam Lifting speed (mm/s)
work in:12/20 |
| Active beam Lifting speed (mm/s) | Fast down: 240 |
| Active beam Lifting speed (mm/s) | Fast return :240 |
| Closed height (mm) | Max: 1300 |
| Closed height (mm) | Min: 800 |
| Cooling motor (KN) | 4
|
